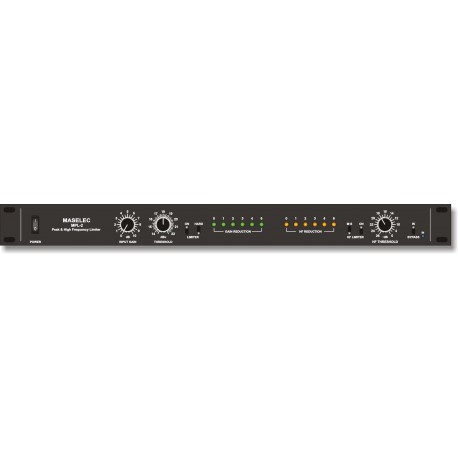

Maselec MPL-2

The Maselec MPL-2 is housed in a 1u 19" rack mount alloy case. A minimum of controls is used due to automatic time constants and optimisation techniques for the gain reduction. The advantage is not only simple operation but also increased performance for highly dynamic and inconsistent materials without the need for continuous readjustments.

The input gain does not reduce the wide dynamic range of the limiter. It can be used at its maximum setting with no increased risk of distortion. This eliminates the need for excessive levels, which could cause clipping in equipment feeding the input of the limiter. A further benefit is that the maximum peak output level (set with the threshold) is independent of different gain settings.

High frequency limiting is primarily intended for use as a de-esser, reducing unattractive high frequencies. Part of the high frequency limiter circuit is also used to reduce distortion from the wideband limiter.

Users of the MPL-2 will notice the removal of spurious peaks, and an increase of subjective levels, without the coloration and increased distortion so often associated with soft clippers and other ultra fast limiters.

Maselec MPL-2 Peak and HF Limiter Overview:

• Brick-wall Limiter and HF limiter in one unit

• HF Limiter reduces high frequencies for de-essing and add analogue warmth

• Minimal controls ensures ease of operation and optimal performance

• Output level independent from input gain
