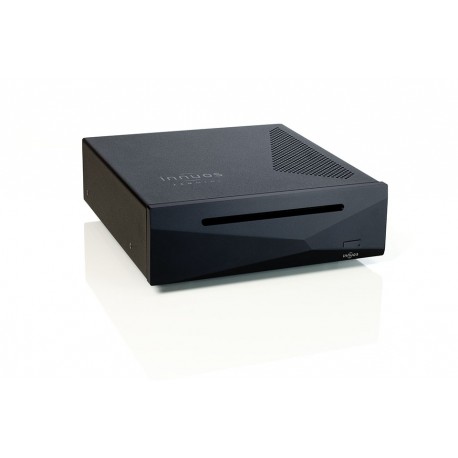

INNUOS ZEN mini MK3 S

Version MK. III S of ZEN mini MK.III

Le ZEN Mini Mk3 S is now equiped with SSD storage and 8Go RAM

Only in black

More details

1 999,00 € tax incl.

Add to wishlist

  • New Custom Motherboard with reduced EMI
  • Dual-Linear Power Supply with ultra-low noise

    regulators and Nichicon MUSE Capacitors

  • Asymmetrical isolation feet inspired by the ZENith SE

  • Medical-Grade Mains Filter

  • Dual Ethernet Ports for LAN and Streamer

    with dedicated isolation transformers

  • 8GB RAM with 4GB In-Memory playback

  • Ultra-low Noise USB Audio Output

  • New Generation Quad-core Intel CPU

Dual-Linear Power Supply

The ZEN ensures a cleaner digital signal by reducing power noise. Through a dual-linear power supply, designed by Dr. Sean Jacobs, with ultra-low noise regulator design, Nichicon MUSE Capacitors and medical-grade mains filter, your music opens up and reveals new levels of realism.

Custom Motherboard

Our own custom-made Innuos motherboard is completely reworked for optimised audio performance. Sources of EMI have been removed and internal clocks optimised, resulting in a "blacker" music background and enhanced realism.

Ultra-low Noise Streamer Output

Dual-ethernet ports with isolation transformers provide an ultra-low noise network connection for your streamer, removing noise from the path and improving sound quality on all network audio.

Anti-vibration Treatment

New asymmetrical isolation feet derived from our award-winning ZENith SE plus added chassis treatment help to combat harmful vibration that affect a clean audio signal.

In-Memory Playback

Now with twice the memory of the Zen Mk2, the new Zen MK3 has 8GB RAM with 4GB dedicated memory. Music is loaded directly to memory for playback so that it doesn’t engage the hard drive, improving sound quality.

AUDIO OUTPUTS

Digital Output   USB 2.0 supporting USB Audio Class 1, USB Audio Class 2 and DoP


CONNECTIVITY

Ethernet   1 x rear panel RJ45 – Gigabit Ethernet
Other   1x VGA, 2x 3.5mm (service connections only)
USB   2x USB 2.0, 2x USB 3.0


FORMATS

CD Formats   Red Book
Disc Compatibility   CD, CD-R, CD-RW
Audio format for stored CDs   FLAC (zero compression) , WAV
Audio Formats Supported for streaming and playing   WAV, AIFF, FLAC, ALAC, AAC, MP3


SAMPLE RATES

Sample Rates   44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , DSD64, DSD128, DSD256
Bit Depths   16bit, 24bit, 32bit


USER CONTROL INTERFACES

Web Interface   Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile   App for iPhone/iPad, Android and Windows 10


HARDWARE

CD/DVD drive   TEAC Slot-loading drive
Hard Drive   SSD storage from 1To up to 4To
CPU   Intel Quad Core 2GHz
Memory   8Gb DDR3


STREAMING and CD Storage

UPnP/DLNA   UPnP Server DLNA device compatible
USB   Connect and play to USB DACs (USB Audio Class 1 and Class 2, DoP)
Average CD Storage Time   5 minutes
CD Metadata   OneMusicAPI aggregating multiple CD metadata sources
Compatible Music Systems   Sonos Multi-room Wireless Music System
Naim Mu-so Multi-room Wireless Music System
Denon HEOS Multi-room Wireless Music System
Squeezebox Multi-room Wireless Music System
Naim Uniti music streamers
Linn DS music streamers
Pioneer N50A
Cambridge Audio CXN
Denon 720AE
DLNA/UPnP compatible devices
USB DACs complying to USB Audio Class 1 or 2
USB DACs supporting DSD over DoP protocol


Requirements

Network   Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Music Controller   Remote control app compatible with the Logitech Media Server (Free and Paid versions available) or Web Browser - Most modern web browsers and platforms are supported
DAC / Converter   DAC with USB input supporting USB Audio Class 1, USB Audio Class 2 or DoP protocols


POWER

Mains Supply   Low ripple Power Adapter, 12V 5A, CEC Level V efficiency (Optional linear power supply)
Power Consumption   10W when idle, 15W peak


PHYSICAL

Dimensions   70 x 220 x 220 mm (H x W x D)
Weight   4 Kg
In the box   Innuos Zen Mini Music Server
AC/DC Power Adapter
UK or EU Mains Cable
2m Ethernet Cable
Getting Started leaflet
