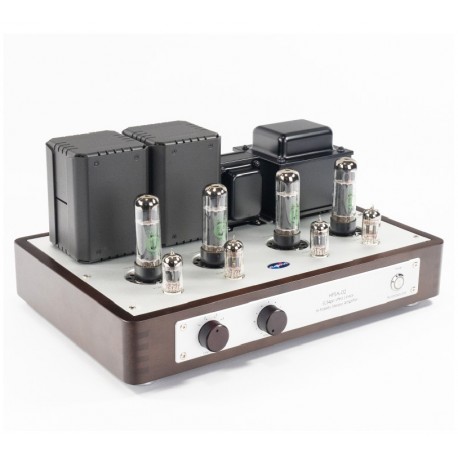

AURORASOUND HFSA-02 - Amplificateur intégré à tubes A

Aurorasound HFSA-02: a tube amplifier built to last a lifetime

The HFSA-02 is a tube integrated amplifier. The input stage uses ECC83 and ECC82 tubes, while the output stage runs a push-pull EL34 configuration with a Lundahl output transformer and UL connection, delivering 31W per channel. The amplifier sits in a solid maple frame 22mm thick, topped with a 4mm solid aluminium top plate: a perfectly rigid structure with no flex, solidly supporting the weight of the transformer and protecting the sensitive tubes for faithful reproduction of both low-mids and delicate highs.

The listening experience

Designed and handbuilt, the HFSA-02 meets the demands of both high-resolution digital playback and analogue listening. The EL34 tubes run in self-bias mode, simplifying maintenance: they can be swapped for other EL34 brands with no adjustment needed. Components are chosen for quality and reliability (Vishay, PRP and Takuman resistors, WIMA film capacitors, TDK-EPCOS electrolytic capacitors, custom power transformers made in Japan, ROHM silicon-carbide rectifier diode), for an amplifier designed to stay unchanged for decades.

Key features

• ECC83 and ECC82 tube input stage
• Push-pull EL34 output stage, UL connection, Lundahl output transformer
• Power: 31W per channel
• Solid 22mm maple frame, 4mm solid aluminium top plate
• Self-biasing EL34 tubes, interchangeable with no adjustment
• High-end components: Vishay, PRP, Takuman, WIMA, TDK-EPCOS, ROHM
• Power and output transformers custom-made in Japan
• Thick-walled gold-plated terminals

Highlights

• Handcrafted build, designed to last for decades unchanged
• Easy maintenance thanks to self-biasing EL34 tubes
• 4 RCA inputs as standard (option: 1 phono MM / 3 line RCA, or 1 balanced XLR / 3 line RCA)
• Volume remote and dust cover included
• Also available as a power amplifier (HFSA), bypassing volume and input selection
• Sold without a power cable

• Type: tube integrated amplifier
• Input tubes: ECC83, ECC82
• Output tubes: EL34, push-pull, UL connection
• Output transformer: Lundahl
• Output power: 31W per channel
• Frequency response: 10Hz - 30kHz at -3dB
• Total Harmonic Distortion (THD): 0.1% @ 1kHz
• Signal-to-noise ratio: 98dB A-weighted
• Input sensitivity: 31dB, 440Ω
• Input impedance: 25kΩ
• Number of channels: 2
• Analogue RCA inputs: 4
• Maximum number of speakers: 2
• Cabinet: solid maple 22mm, 4mm aluminium top plate
• Dimensions (W x D x H): 44 x 29 x 22.8 cm
• Weight: 20 kg
• Accessories included: volume remote, dust cover
• Power cable not included
