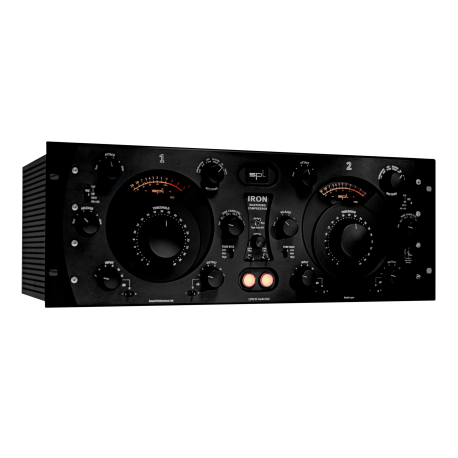

SPL IRON V2

Awesone mastering compressor !

Modern with provided features

Color: Red or Black

More details

5 990,00 € tax incl.

Add to wishlist

Mastering Compressor

Basic Concept

The IRON Mastering Compressor is a variable-bias limiter/compressor from the basic concept. Through the integration of new technologies, this concept gets significantly improved.

IRON works on the principle of the bias controlled remote cutoff tube. Sharp-cutoff tubes with a steeper characteristic are parallelly connected to these.

Depending on the level of the signal amplitude, one or another tube is in charge for signal processing/limiting. The positive result is a well-balanced sound and more controllable settings of the parameters.

All four tubes in the IRON are a specially matched set to the overall system.

The tubes are integrated into the IRON’s signal flow via special Lundahl manufactured balanced high-level double core mu-metal-iron transformers.

An independent feed-forward resistive vactrol-opto-isolator in the control path of the variable-bias tube circuit intercepts extreme signal peaks, ensuring that the tube circuitry achieves its full sonic potential.

Thanks to SPL 120V technology, tube compressor technology sets new standards in IRON.

Side Chain Insert

In position 6 (Ext) the external side-chain insert is activated. Via insert send and insert return, an external stereo equalizer can be integrated into the side-chain signal. Individual filter curves can be created to focus the response of the compression to certain frequency ranges.

The side-chain equalizers in the IRON Mastering Compressor only process the control signal – not the audio signal! If no external equalizer is connected to the side-chain insert or if the send and return of the side-chain insert are not bridged with a cable, the audio signal in the IRON will be interrupted when the switch position (Ext) is selected.

Operating Principles of a Compressor


The basic operating principles of a compressor/limiter can be easily explained. The level of an audio signal is reduced according to the specified attack time and ratio whenever it exceeds a given threshold. This reduction ceases when the release time elapses, while the compressed signal is amplified with the make-up gain.

Compressors basically differ from each other in the technology used. This technology - tubes, opto, FET, or VCA - is what gives a compressor its particular character. Some units sound soft and silky, some sound pounding, while some others make sound fatter, and there are those that make sound clearer, harder or more percussive. The trick resides in how the unit is technically designed, in the signature of the maker. Different compressors with the exact same settings might work and sound completely different. They provide different sounds for different applications and music styles.

Nowadays, the compressor has become a key element when it comes to provide dynamicsand punch to any production. The number of compressors available is huge and it‘seasy to succumb to the promises made by software emulations and analog recreations ofvintage gear as the perfect solution. Unfortunately, many of these emulations and recreationsdiffer quite a bit form their original counterparts. You must simply accept that the components used today, like the transformers, tubes and all other passive elements, are different to the ones originally used and that they can‘t be digitally emulated. No software (DSP-emulated compressors) or hardware replica will ever be able to sound like the original. An authentic sound can only be achieved with the original unit.

Innovating Compression


The IRON mastering compressor was conceived as a variable-bias limiter/compressor right from the start. However, the implementation of new technologies results in many improvements. Its basic operating principle as a variable-bias tube compressor was loosely inspired by the sonic and technical operation of Fairchild, Collins and Gates compressors, which used remote cut-off of tube biasing to achieve a well-balanced, well-compensated and musical compression.
However, the IRON compressor features a second sharp cut-off tube, a medium-variable bias triode, in its circuit design. This tube is connected in parallel to the remote cut-off tube and it has a considerably steeper characteristic curve. The tube used to process the signal depends on the amplitude of the latter. This results in a more well-balanced sound and more controllable settings of the parameters. The pair of parallel connected tubes has been specially matched for the IRON. In order to guarantee that tube selection and pairing is perfect, we use the Weigl Roe Test for PC. The optimal selection of the tubes guarantees that all IRONs have the same sonic characteristics.

Moreover, we use Lundahl custom-made balanced high-level dual-coil mu-metal iron transformers in the signal flow of the variable-bias tubes, which add to the overall sound.
The second new technology implemented is the independent feed-forward resistive opto-isolator in the control path of the variable-bias tube circuit. Its function is to limit signal peaks and, thus, get a smaller THD (Total Harmonic Distortion) within the variable-bias tube section. The result is a silkier, more homogeneous sound in the higher frequencies of the music signal. This circuit has its own rectifier in the signal path. The optical control element does not work in the sense of an audio limiter, like in a conventional opto-compressor. It is built-in in the control path of the parallel connected variable-bias tube, not in the audio path itself. Time control parameters, like attack and release time, are adaptedand fixed to the variable-bias tube circuit.

The IRON compressor works as a feedback compressor when set to the variable-bias tube circuit and as a feed-forward compressor when set to the opto-control circuit.Thirdly, the complex rectifier circuit is also worth mentioning, since it is the basis for tube control. You can use the six-position switch to choose either of the six different control characteristic curves of the diodes within the rectifier. Given the specific characteristic curve of its elements, the combination of germanium, silicon and LED diodes produces different behaviors and characteristics for the Attack and Release times.

Hence, compared to most compressors, the application scope of the IRON is clearly enlarged, resulting in new possibilities regarding the processing of music material. The fourth exceptional feature is the comprehensive logical relay circuit that perfectly links both channels together, making the right channel the Master regarding Release, Attack, Threshold, Rectifier, Tube-Bias and Side-Chain EQ settings.

120 Volt Technology


SPL‘s goal was to push analog signal processing to the limits. That‘s why we combined the best possible components with a high-grade optimized circuit design. We have been using the in-house developed 120 volt technology - the highest-ever operating voltage used for audio applications - in all our products of the mastering series for years.

Some of the most highly respected mastering studios today revolve around SPL consoles and signal processors from our mastering series (Bob Ludwigs Gateway Mastering & DVD in the USA, Simon Heyworth‘s Super Audio Mastering in the UK, Galaxy Studios in Belgium, and the legendary Wisseloord in the Netherlands, for instance).

The 120 volt technology is based on op-amps developed internally by SPL‘s founders together with chief developer Wolfgang Neumann. The IRON features the most advanced generation of these op-amps. They boast better tech specs thanks to the thermal behavior optimization they underwent under the hands of Bastian Neu. Ultimately, the supply voltage is key for the overall dynamic response of a processor. Voltage is to an electrical circuit what cylinder capacity is to an internal combustion engine. You can‘t replace cylinder capacity with anything else, except more cylinder capacity.



Frequency Range (40 kHz = -3 dB) 10 Hz- 40 kHz
CMRR (bei 0 dBu) 1 kHz: › 80 dB / 10 kHz: › 65 dB
THD & N (0 dBu) › 82 dB
Noise (A-weighted) - 98 dBu
Total Harmonic Distortion
10 dBu: 0,3 % at 100 Hz, 0,06 % at 1 kHz, 0,02 % at 15 kHz
0 dBu: 0,01 %
+10 dBu: 0,002 %
Inputs
Input Inpedance 20 kOhm
Max. Input Level + 32,5 dBu
Outputs
Output Inpedance ‹ 50 Ohm
Max. Output Level + 32,5 dBu
Power Consumption: 0,24 Amp, 230V/50Hz, 44 Watt, 55 VA, 0,46 Amp, 115V/60Hz, 42 Watt, 52 VA
Fuses 230 V/50 Hz: 1 Amp, 115 V/60 Hz: 2 Amp
Dimensions
Standard EIA 19 Inch Housing/4U 482 x 177 x 311,5 mm / ca. 19“ x 7“ x 12,25“
Weight 11 kg / 24,25 lb
