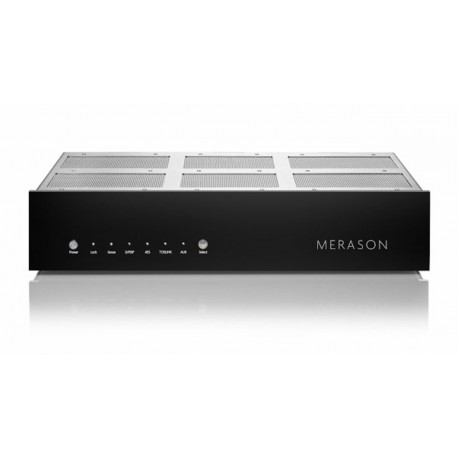

MERASON - DAC1

A Swiss-made DAC, we know the Frérot who is very successful.

The quality of this manufacturer is demonstrated, the DAC1 is the big brother of the Frérot Reclocking the input signal without resampling

It is a NOS DAC, meaning it will not apply oversampling to your file, so it does its job without trying to add anything.

Reclocking the input signal without resampling, it processes your data up to 192 kHz @ 24 bit

5 digital inputs:

- 1 USB 2.0 input

- 1 RCA input (S / Pdif)

- 1 optical inputs (TosLink)

- 1 AES input

Specifications MERASON DAC1

Output: max. 3 V RMS (balanced), max. 1.5 V RMS (unbalanced).

Frequency Response: 20 Hz to 20 kHz +/- 0.2 dB.

THD+N: < 0.012 %.

SNR: > 120 dB.

DAC: twice BurrBrown 1794A, discrete I/V stage.

Power Supply

230 V or 115V (one of them) AC / 50 to 60 Hz, 30 W.

Operation

Ambient temperature 10°C to 30°C, 50°F to 86°F.

Humidity max. 80 %, non-condensing.

During operation, the device heats up by approx. 20 K compared to the ambient

Input format

44.1 kHz@16 bit, 44.1 kHz@24 bit.

48 kHz@16 bit, 48 kHz@24 bit.

88.2 kHz@24 bit.

96 kHz@24 bit.

176.4 kHz@24 bit (USB).

192 kHz@24 bit.

Dimensions

Width: 45 cm, 17.7 In,

Height: 10 cm, 3.9 In,

Depth: 29 cm, 11.4 In,

Weight: 8kg, 17.6 lbs (11 kg, 24.3 lbs with stainless steel front).
