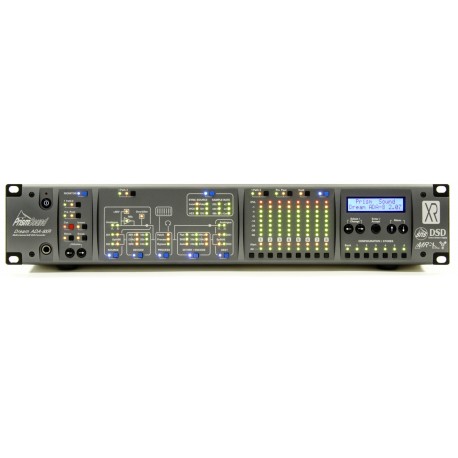

The Prism Sound ADA-8XR is ideal for location recording, stereo and surround mixing, mastering and monitoring, or as a flexible companion for your DAW or MDM. The ADA-8XR takes the philosophy of the widely-acclaimed Prism Sound converter range a stage further: For the first time, the same goals of ultimate sound quality and versatility have been realised in a multi-channel, 192kHz-capable format.
- Eight channels of high-quality 24-bit, 192kHz, A/D AND D/A conversion (or 16 channels of A/D or D/A) Flexible digital interfacing options:
- AES3 - 2-speed or 2-wire, also handles S/PDIF
- FireWire - for direct connection to DAW software on PC or Mac
- Pro Tools|HD - direct connection of up to 32 inputs and outputs per card
- Pro Tools|24 MIX - direct connection in place of 888|IO
- DSD - for SACD production, with SDIF2/3 and optional MAC-DSD (Cat5) interface; also allows sample-rate-conversion between any PCM rates
- Built-in Prism Sound 'SNS' noise-shapers for ultimate 16-bit & 20-bit reductions
- Built-in Prism Sound 'MR-X' word-mapping for lossless recording up to 24-bit, 96kHz on standard DA-88 or ADAT MDMs, or other 16 or 20-bit media
- Built-in Prism Sound 'DRE' function gives 24-bit performance on 16-bit media WITHOUT sacrificing tracks
- Stereo monitor, with headphones and analogue AND digital line outputs, can monitor any input or output pair, or a panned stereo mix of all eight channels
- Electronically balanced, transformerless, galvanically isolated XLR analogue inputs and outputs ensure freedom from noise pick-up and crosstalk, with software-controlled balance and line-up
- Ultimate Prism Sound clock-stability and jitter-rejection for crystal-clear imaging, with independent multiple PLLs for A/D and D/A paths
- Prism Sound 'Over-killer' selectable on analogue inputs: the best-sounding gentle limiting for louder masters - with no 'overs'
- Intuitive user interface, provides fast access to all I/O and processing functions; with continuous display of all settings
- Versatile eight-channel LED bargraph / status monitor can access all points in A/D or D/A signal paths
- Expandable DSP 'processing' module in each path
- All signal processing functions can be also be carried out in 'D-D' mode, including conversion between different interface formats
- Modular construction allows upgrading of all input and output cards (INCLUDING A/D, D/A, and DSP boards); no need to worry about future converter advances or new interface standards
- Internet-upgradeable software - loads from your PC or Mac into 'flash' memory inside the ADA-8XR;
